Understanding Watch Movements: Mechanical, Quartz, and Hybrid Explained

Exploring the various types of watch movements is truly exciting for anyone curious about the fascinating world of horology.

This guide offers a friendly breakdown of each movement, highlighting its unique technical features, power source, accuracy, and some wonderful examples from top brands.

How Accuracy is Measured

A watch's precision is usually quantified by the number of seconds gained or lost daily (or monthly or yearly for quartz). Below is a comparison of various movement types:

Standard Mechanical: ±20–30 seconds/day
COSC-Certified Chronometer: −4/+6 seconds/day
Standard Quartz: ±15 seconds/month
High-Precision Quartz (HPQ): ±5 seconds/year

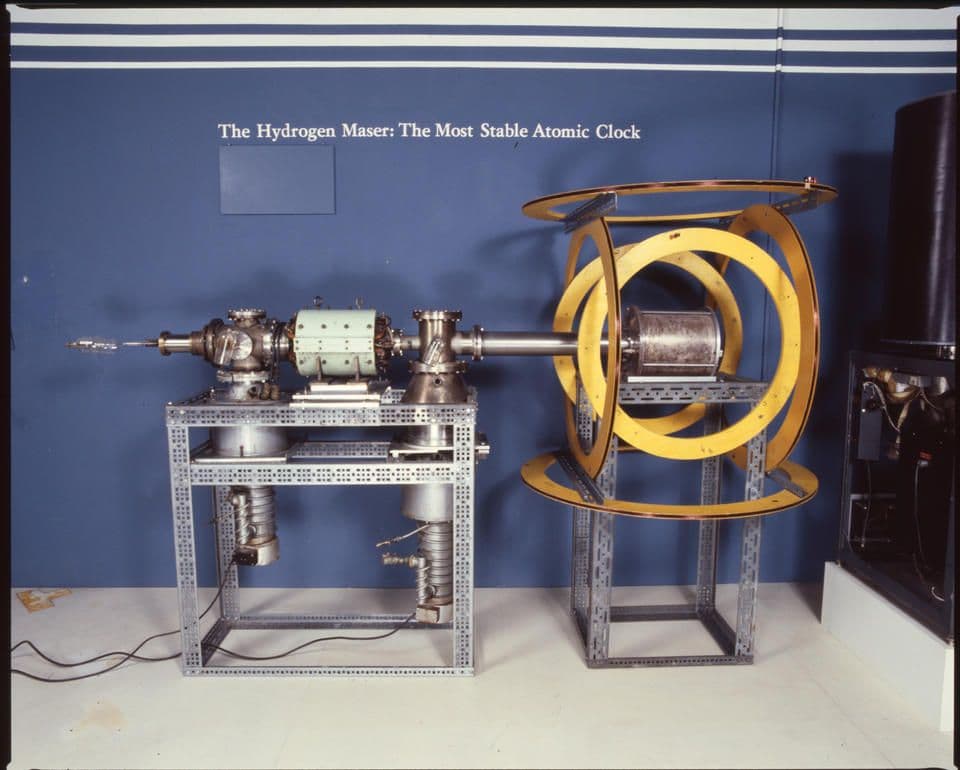

Atomic Clock (Reference): ±1 second per million years

Mechanical Movements

Mechanical movements utilize a wound mainspring to store energy and drive the watch. They are valued for their craftsmanship and tradition.

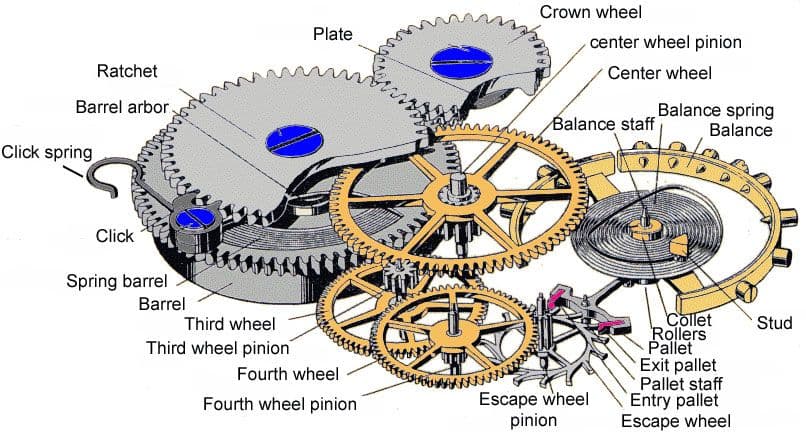

Winding the crown tightens the mainspring inside the barrel. The spring stores energy by coiling around the arbor and unwinds slowly as the watch runs, pulling the barrel drum to send power through the gear train, consisting of the center, third, and fourth wheels. This energy drives the escapement, which controls its release, sending steady pulses to the balance wheel that swings back and forth. This motion keeps time and moves the watch hands. The image below illustrates how these parts work together.

Manual-Winding

Powered by: Hand-winding the crown
Key Features: No rotor, thinner profile, classic design
Examples: Patek Philippe Caliber 215, Omega Caliber 1861 (Speedmaster Moonwatch)

Automatic (Self-Winding)

Powered by: Rotor that winds the mainspring through wrist motion
Key Features: No battery needed, standard in luxury watches
Examples: Rolex Caliber 3135, Omega Caliber 8800, Cartier 1847 MC

Quartz Movements

Quartz watches utilize a battery and a quartz crystal to maintain time with remarkable precision.

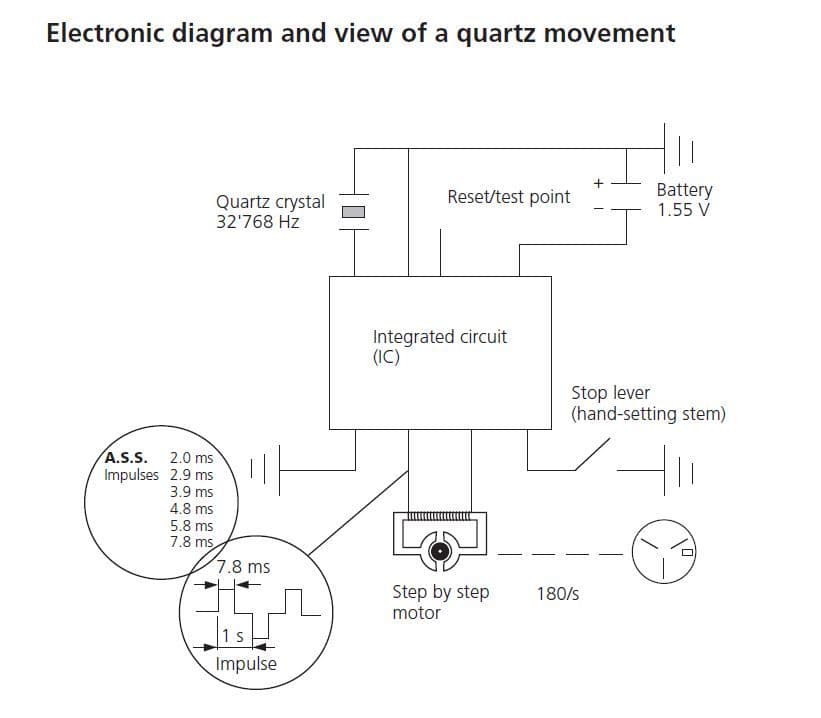

In a quartz watch, a small battery sends an electric current through a quartz crystal, causing it to vibrate at an exact frequency: 32,768 times per second. These steady vibrations are picked up by an integrated circuit, which then turns them into regular electrical pulses. These little pulses power a tiny stepping motor, which helps move the gear train. As a result, the gear train advances the hands of the watch at a beautifully consistent rate. This clever system eliminates the need for winding or complex mechanical parts, such as escapements and balances, allowing your watch to keep time with accuracy and require minimal maintenance.

Below image represents standard analog quartz watches (not digital or multifunction quartz modules).

Standard Quartz

Powered by: Battery
Accuracy: ±15 seconds/month
Examples: Seiko Quartz, Citizen Quartz

High-Precision Quartz (HPQ)

Powered by: Battery with temperature-compensated circuits
Accuracy: ±5 seconds/year
Examples: Longines VHP, Grand Seiko 9F

Solar Quartz

Powered by: Light energy (natural or artificial)
Key Features: No battery changes, eco-friendly
Examples: Citizen Eco-Drive, Seiko Solar

Kinetic Quartz

Powered by: Wrist motion (charges a capacitor)
Key Features: Hybrid of automatic and quartz
Examples: Seiko Kinetic, Seiko Kinetic Perpetual

Hybrid Movements

Hybrid movements merge traditional mechanics with electronic regulation for enhanced precision.

In a hybrid watch movement like the one shown above, power comes from your wrist's motion. As you move, a rotor spins to create electricity via a tiny generator, storing it in a rechargeable battery or capacitor. Instead of a traditional escapement and balance wheel, this energy powers a quartz-regulated step motor, sending precise impulses to turn the gears that move the hands. Thus, while featuring mechanical parts like a rotor and gear train, its timekeeping is electronically controlled, combining motion charm with quartz accuracy.

Spring Drive (Seiko Exclusive)

Powered by: Mainspring, regulated by a quartz oscillator and electromagnetic brake
Key Features: Ultra-smooth sweeping seconds hand, ±1 sec/day accuracy
Examples: Grand Seiko Spring Drive 9R66

Electro-Mechanical Chronometers (Rare)

Blend: Mechanical motion with quartz regulation
Use Case: Specialized chronometers; not widely available.

Functional & Complication Movements

While not independent movement types, complications are wonderful additional features integrated into a watch’s core movement, whether it’s mechanical or quartz. These include fantastic options like chronographs (stopwatch features), GMTs (dual time zones), perpetual calendars (that automatically adjust for month lengths and leap years), and tourbillons (with rotating escapements to counteract gravity).

These amazing features not only add intricate complexity and fine craftsmanship to a watch, but they also bring a sense of prestige, making them particularly sought after by enthusiasts and collectors alike. Although powered by the fundamental movement, these complications truly boost the functionality and charm of a timepiece.

Mechanical movements appeal to collectors for their craftsmanship and complexity. Quartz movements lead in reliability, affordability, and low maintenance. Hybrid systems like Spring Drive and Kinetic merge the best of both worlds. Complicated movements such as Chronographs, GMTs, and Tourbillons highlight technical innovation and status.

Each movement type reflects a different philosophy in watchmaking. If you are struggling with what to choose, check out our Interactive Watch Finder to discover the perfect watch for you!
